Laser Rust Removal

No one likes rust—whether that be because it ruins colours, decreases magnetic attraction, weakens structures, or adds unwanted friction, manufacturers would do away with it entirely if they could. However, rust is a naturally occurring corrosion process from water and oxygen exposure on iron or steel. Because of this, it is almost impossible to avoid.

Since rusting can’t be prevented entirely, industries using iron and steel have turned to rust removal techniques to keep their components strong and rust-free. Methods like sandblasting, shot blasting, chemical removal, and laser rust removal are some ways technicians remove rust. However, using a laser rust remover is a standout method among these processes because of its efficiency, precision, and top-tier automation. A laser rust remover can be any laser system or laser marking system so long as it is set to the correct settings for rust removal.

Focused power is a necessity for rust removal. It aims to bring back the original form of the rusted part. Unfocused light is unproductive because it can be too dispersed to effectively remove all of the rust, and it can also have a more unpredictable effect on the surface of the material. To eliminate this as a concern, KEYENCE has Z tracking to keep the laser in focus to improve the laser rust removal process.

KEYENCE’s hybrid laser marker has a variable lensing system that can adjust the focal distance of the laser marker along with an internal camera to track the parts inside the laser's field of view. This variable lensing system, also known as 3-Axis control, and the internal camera work together to allow the KEYENCE hybrid laser to track the part in the X, Y, and Z direction. This ensures that the laser hits the target point regardless of the part’s positioning, height, and size.

Besides the XY and Z tracking avoiding unnecessary processing, it also assists in the efficiency aspect of laser rust removal for two reasons. First, there’s no need to spend time repositioning every part for the correct angle when removing rust with a laser. Secondly, this enables the assembly line to accommodate various types of components or arrange identical parts in different configurations. In either scenario, the use of XY and Z tracking technology eliminates the laborious tasks associated with rust removal.

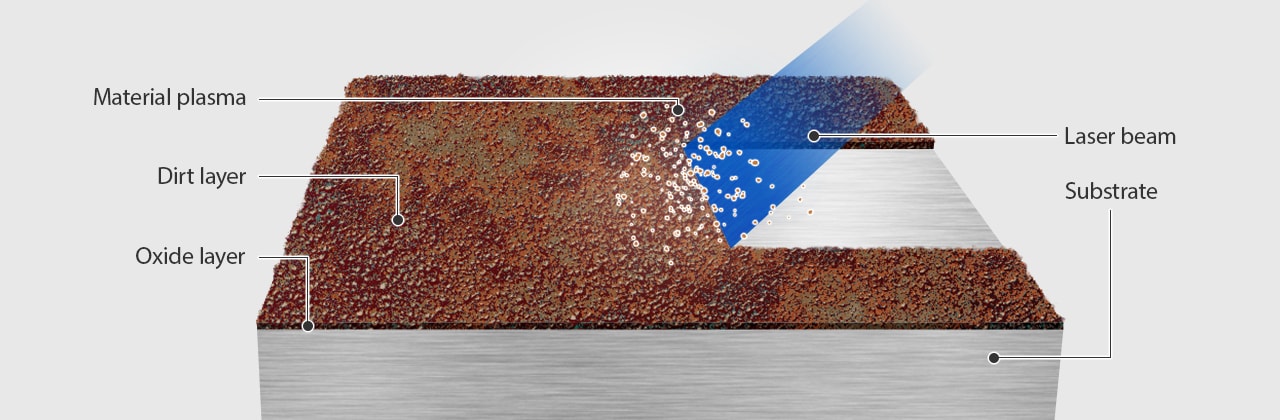

Laser ablation, the laser rust removal process, is powered by high peak power and short pulse frequencies. KEYENCE takes laser ablation to the next level with peak powers higher and frequencies faster than other laser models.

3 Axis Hybrid Laser Marker MD-X Series

KEYENCE’s hybrid laser marker has a peak power of 200kW and a pulse of 4 ns. This high peak power is twice that of a conventional YVO₄ laser and is ideal for rust removal.

3 Axis Fibre Laser Marker MD-F Series

KEYENCE’s fibre laser has multiple power settings: 30W or 50W. This high wattage competes with the 20W output that conventional fibre lasers have.

KEYENCE’s rust-removing laser machines are supplied with 3-axis control, ideal for the unique challenges of rust removal.

Rust occurs on iron or steel: two versatile metals used across industries for many parts. Cables, surgical instruments, semiconductors, and automobile components exemplify this diverse group. With the diversity of shapes, sizes, and uses, 3-axis control is handy for targeting everything.

3-axis control allows the beam spot to target any shape or size, even if it is non-geometric. Stepped, incline, cylindrical, and cone targets with rust around corners, edges, or inside small areas are quickly and precisely processed with KEYENCE’s laser rust remover.

The high speed of laser rust removal is a helpful asset for tackling large-scale projects that require efficient completion. Laser rust removal is a one-step process that only involves the shot of the laser beam onto the rust for it to evaporate off.

Removing rust with a laser competes with other solutions like chemical rust removal, which can require an overnight process for heavy rust removal.
