Application Examples —
O-Ring Detection
- Industry
- Automotive industry
- Advantages
- Improved yield
- Detection details
- Sensors are used in the automotive part assembly process to perform a difference check to determine whether the O-ring has been set in the correct position, helping to improve the yield.
Judgement details
-

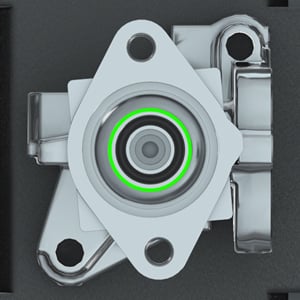

OK
-

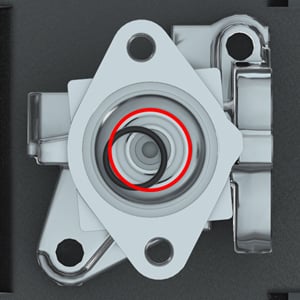

NG
Key installation points
Even with conventional sensors, it was possible to detect O-rings, but misaligned or incorrectly seated O-rings could not be supported.
The IV Series is equipped with a position adjustment function. This enables stable detections even if misalignments occur. Furthermore, the edge presence tool can be used to check the position of the O-ring at the same time, which enables simultaneous checks for “incorrect seating.”
