Application Examples —
Steering Wheel Assembly Check
- Industry
- Automotive industry
- Advantages
- Pokayoke (prevention of mistakes)
- Detection details
- Sensors are used in the steering wheel assembly process to judge whether multiple screws have been inserted into the steering wheel correctly, helping to eliminate mistakes.
Judgement details
-

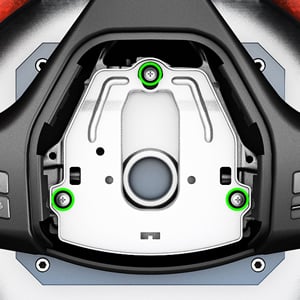

OK
-

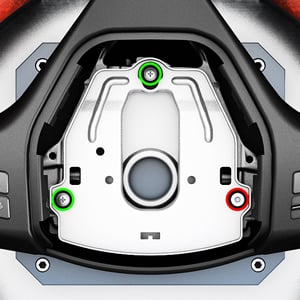

NG

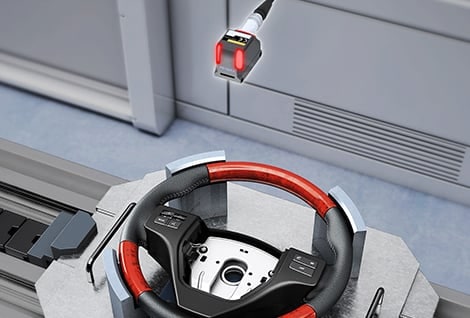

Key installation points
Conventionally, multiple reflective sensors were used to perform this difference check. However, these differences checks were unstable due to the rounded surfaces on the heads of the screws.
With the IV Series, three separate locations can be checked simultaneously with a single unit.
Furthermore, the Outline Tool can be used for stable difference checks regardless of the rounded surfaces on the screws and regardless of variations in the brightness due to the reflected light.
